Case Studies

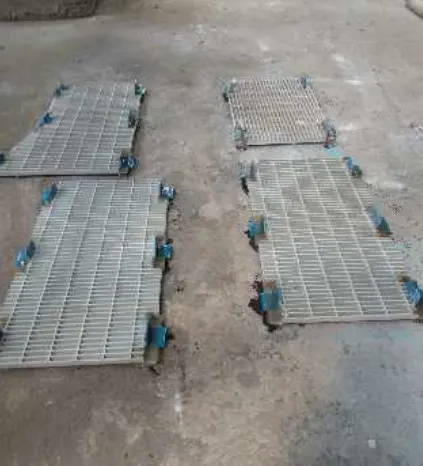

Pultruded

Pultruded Grating

pipes1

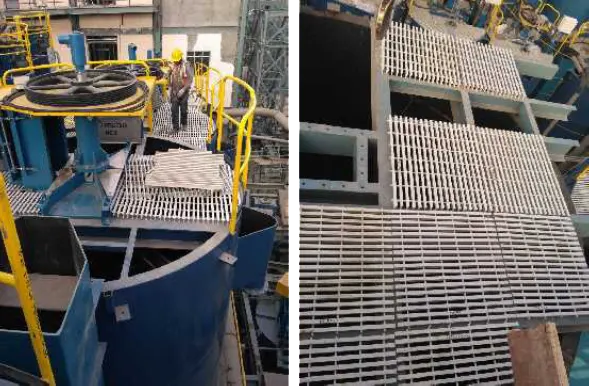

Project : 1.5 MTPA Lead – Zinc Beneficiation Plant, Phase – III, At S.K.Mines, Rajasthan
Size : I beam – 38 * 15 * 6
Design Load Capacity : 500 kg/m2 for 38 mm height, 800 kg/m2 for 50 mm height
MOC : Isopthalic Resin
Material Type : Fire Retardant – UV stabilized
Colour : Light Gray Color – (7035)
Qty : 753 m2 / 192 m2
Fabrication Method : Fabricated from Pultruded Profile
Applicable Code : ASTM D 638/D 790
Inspection Agency : L & T
Year of Execution : 2018

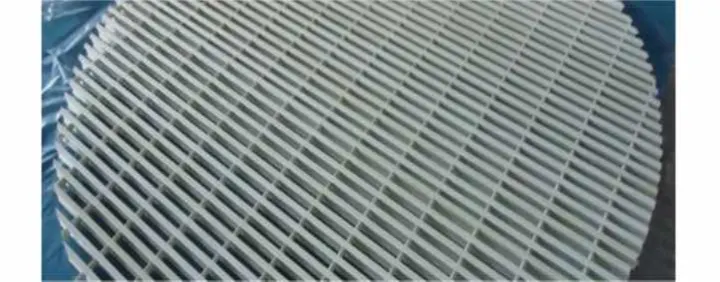

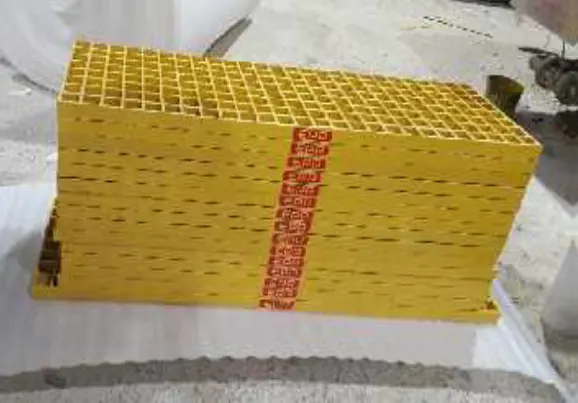

Molded Grating

pipes1
Project : Al Fatah Water & Power
Size : 38 * 38 * 6 mm thk.
Design Load Capacity : 1000 kg/m2
MOC : Isopthalic Resin – FR Grade UV stabilized
Material Type : Fire Retardant – V0 as per UL 94
Colour : Golden Yellow
Qty : 700 m2
Fabrication Method : Molded
Applicable Code : ASTM D 638/D - 790/D - 2584
Inspection Agency : SGS
Year of Execution : 2012 – 2013

Molded Grating

pipes1
Project : HIIR (Halogenated Butyl Rubber) Project at Jamnagar – JV
Size : 38 * 38 * 6.6
Design Load Capacity : 500 kg/m2
MOC : Isopthalic Resin
Material Type : Fr Grade – UV stabilized
Colour : Light Gray – (RAL 7035)
Qty : 1750 m2
Fabrication Method : Molded
Applicable Code : ASTM D 2584/2583/D 638/D 790
Inspection Agency : BVQI
Year of Execution : 2019

Molded Grating

pipes1
Project : Replacement of existing trench cover Due to Corrosion at TSL, Angul
Size : 38 * 38 * 6.4 mm thk
Design Load Capacity : 500 kg/m2
MOC : Isopthalic Resin
Material Type : Fire Retardant – V1 as per UL 94 – UV stabilised
Colour : Pure Gree – ( RAL – 6037)
Qty : 1520 m2
Fabrication Method : Molded
Applicable Code : ASTM D 2584 /ASTM D 2583
Year of Execution : 2019

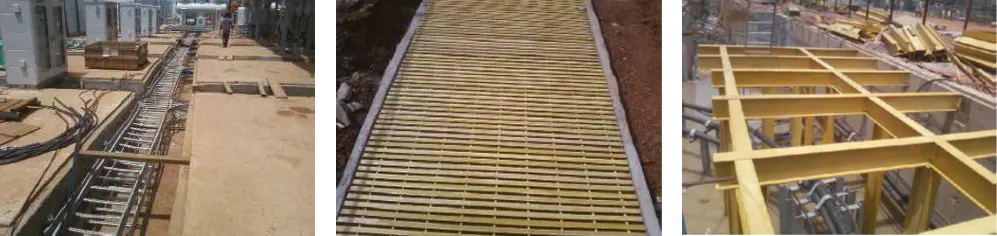

Putruded Grating for Cable Trench cover with pultruded support at Pit and Chequered plate for pit cover

pipes1
Project : 2400 MW Samalkot Coal Based Captive Power Plant Expansion Project, Samalkot, Andhra Pradesh.
Size : Grating : I beam 50 * 25 * 4 mm thk. I beamSupport : 201 * 103 * 9.5 mm thk. I beam Support : 300 * 150 * 12 mm thk. Chequered Plate – 5 mm thk.
Design Load Capacity : 500 kg/m2
MOC : Isopthalic Resin
Material Type : FR grade – V1 – UV stabilised
Colour : Golden Yellow
Qty : 4000 m2 / 2500 running m/2500 running meter/ 1500 m2
Fabrication Method : Pultrusion/ Hand lay up
Applicable Code : ASTM D 638/790/2584/2583
Year of Execution : 2012

Molded Grating with Chequered Plate

pipes1
Project : Internal Walk way and Trench covering for Chemical Plant
Size : 100 * 25 * 25 * 5.5 mm thk.
Design Load Capacity : 500 kg/m2
MOC : Isopthalic Resin
Material Type : Fire Retardant – Low flammability
Colour : Light Gray – RAL (7035)
Qty : 178 m2
Fabrication Method : Grating – molded Chequered Plate – Hand Lay Up
Applicable Code : ASTM D 2583/2584
Year of Execution : 2018

Molded Grating

pipes1

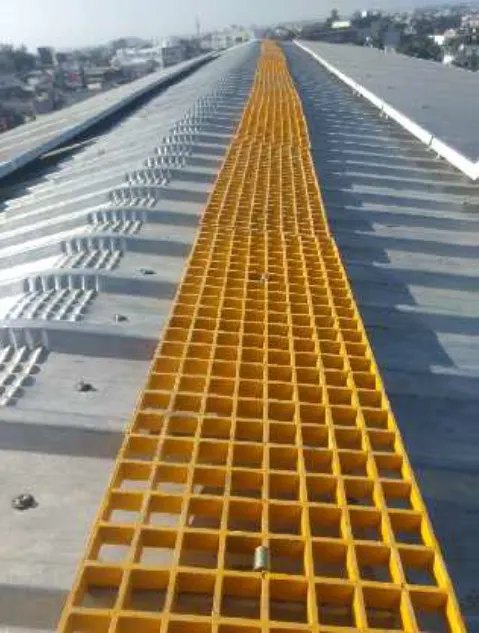

Project : Solar Project
Size : 38 * 38 * 25 * 5.9 mm thk.
Design Load Capacity : 500 kg/m2
MOC : Isopthalic Resin
Material Type : Fire Retardant – V1 – UV stabilized
Colour : Golden Yellow – RAL (1004)
Qty : 210 m2
Fabrication Method : Grating – Molded
Applicable Code : ASTM D 2583/2584
Year of Execution : 2020

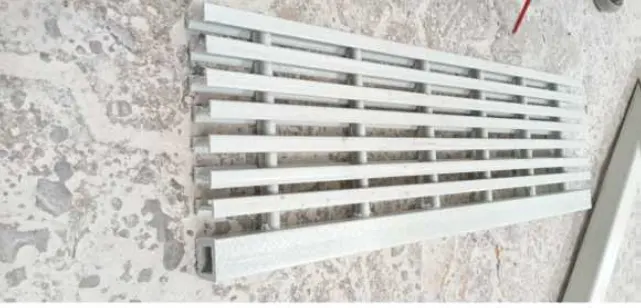

Pultruded Grating

pipes1
Project : Chemical Plant - Expansion Cellulose Division
Size : 50 * 25 * 15 * 4
Design Load Capacity : 1000 kg/ m2
MOC : Isopthalic Resin
Material Type : Fire Retardant – low flammability as per IS 6746 UV stabilized
Colour : Light Grey ( RAL 7035)
Qty : 630 m2
Fabrication Method : Pultruded profile fabrication
Applicable Code : ASTM D 2583/2584
Year of Execution : 2013

Pultruded Grating

pipes1
Project : Solar Project
Size : 25 * 25 * 15 * 3.6 mm
Design Load Capacity : 350 kg/m2
MOC : Normal Grade Vinyl Ester Resin
Material Type : Fire Retardant – Low flammability - UV stabilised
Colour : Light Grey – (RAL 7035)
Qty : 6000 m2
Fabrication Method : Pultrusion
Applicable Code : ASTM D – 790/638 – 2584/2583
Year of Execution : 2018

Pultruded Grating

pipes1
Project : Cement Industries
Size : 25 * 25 * 15 * 3.6 mm thk.
Design Load Capacity : 350 kg/m2
MOC : Normal Grade Vinyl Ester Resin
Material Type : Fire Retardant – Low flammability - UV stabilised
Colour : Light Grey – (RAL 7035)
Qty : 6000 m2
Fabrication Method : Pultrusion
Applicable Code : ASTM D – 790/638 – 2584/2583
Year of Execution : 2018

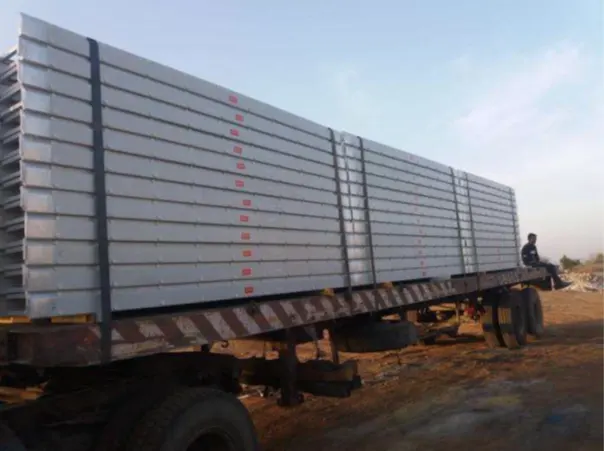

FRP Ladder Type Cable Tray with Flat Cover & Fittings

pipes1
Project : Mundra LPG Terminal
Location : Mundra, Gujarat, India.
Details Size Qty. : 600 × 100 × 6 mm - 9220 m, 300 × 100 × 6 mm - 864 m, 150 × 100 × 6 mm - 643 m
Standard Length : 3 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Dark Admiralty Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2015

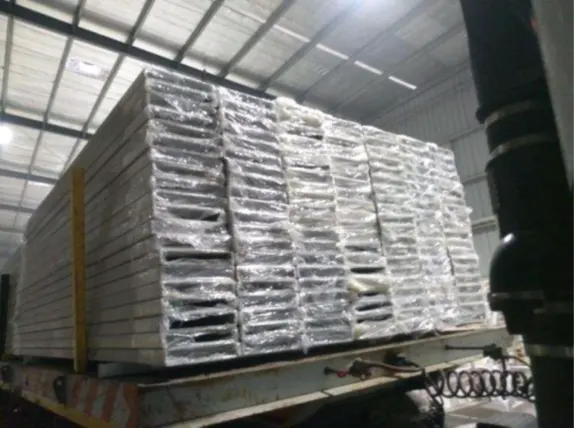

FRP Perforated Cable Tray

pipes1
Project : ISOM Project
Size Qty. : 150 × 75 × 4 mm - 6000 m Dark Gray, 200 × 75 × 4 mm - 1000 m Dark Gray, 300 × 75 × 4 mm - 2000 m Dark Gray, 60 × 30 × 4 mm - 2500 m Smoke Gray, 108 × 54 × 4 mm - 1500 m Smoke Gray
Standard Length : 3 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Dark Admiralty Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard :NEMA FG – 1 : 1993
Year of Execution : 2016

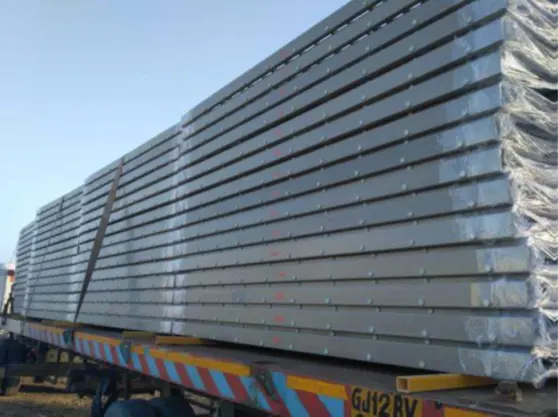

FRP Ladder Type Cable Tray

pipes1
Project : Adani Dhamra
Details Size Qty. : 600 × 100 × 6 mm - 16973 m, 450 × 100 × 6 mm - 3368 m, 300 × 100 × 6 mm - 4307 m, 150 × 100 × 4 mm - 8568 m, 75 × 50 × 4 mm - 11675 m
Standard Length : 3 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Pebble Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2016

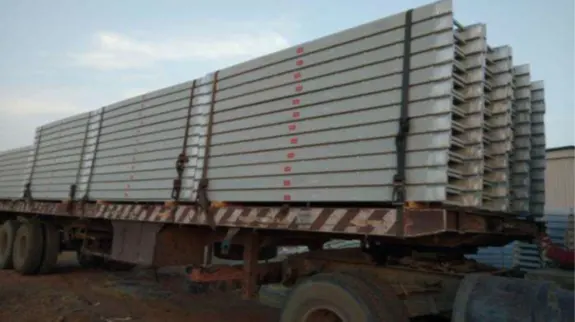

FRP Perforated Cable Tray

pipes1
Project : Reliance Industries
Details Size Qty. : 106 × 54 × 4 mm - 650 m, 150 × 100 × 3 mm - 800 m, 200 × 100 × 3 mm - 500 m
Standard Length : 3 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Light Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2016

FRP Perforated Cable Tray

pipes1
Project : Adani Dhamra TH & MHS System
Details Size Qty. : 75 × 50 × 4 mm - 27000 m, 150 × 100 × 4 mm - 7650 m, 300 × 100 × 6 mm - 4150 m, 450 × 100 × 6 mm - 3250 m
Standard Length : 3 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Pebble Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2017

FRP Ladder Type Cable Tray & Fittings

pipes1
Project : RSPL Chemical Complex
Details Size Qty. : 150 × 150 × 4 mm - 580 m, 300 × 150 × 4 mm - 6960 m, 600 × 150 × 6 mm - 355 m, 900 × 150 × 6 mm - 4750 m
Standard Length : 6 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Admiral Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2017

FRP Ladder Type Cable Tray & Fittings

pipes1
Project : Haldia Petrochemicals Ltd.
Details Size Qty. : 50 × 50 × 3 mm - 1842 m, 100 × 50 × 3 mm - 8950 m, 208 × 104 × 4 mm - 1400 m 300 × 150 × 3 mm (With Flat Cover) 3150 m, 600 × 150 × 4 mm (With C - Cover) 4000 m
Standard Length : 2.5 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Light Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2018

FRP Ladder Type Cable Tray with Flat Cover & Fittings

pipes1
Project : Mundra LPG Terminal
Details Size Qty. : 600 × 100 × 6 mm - 9220 m, 300 × 100 × 6 mm - 864 m, 150 × 100 × 6 mm - 643 m
Standard Length : 3 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Dark Admiralty Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2018

FRP Ladder Type Cable Tray with C - Cover

pipes1
Project : Fourth Partner Energy
Details Size Qty. : 100 × 50 × 3 mm - 10000 m, 150 × 50 × 3 mm - 10000 m, 200 × 50 × 3 mm - 10000 m
Standard Length : 3 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Light Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2018

FRP Ladder Type Cable Tray with C - Cover

pipes1
Project : Mumbai Refinery Expansion Project of HPCL - Mahul Refinery
Details Size Qty. : 150 × 100 × 3 mm - 1500 m 3 m, 150 × 30 × 3 mm - 1100 m 3 m, 300 × 30 × 4 mm - 900 m 3 m, 100 × 30 × 3 mm - 1800 m 3 m, 200 × 50 × 4 mm - 200 m 3 m, 300 × 100 × 4 mm - 100 m 3 m, 60 × 20 × 3 mm - 600 m 3 m, 60 × 20 × 3 mm - 1 m 1 m, 100 × 30 × 3 mm - 1 m 1 m, 300 × 100 × 4 mm - 1 m 1 m, 450 × 100 × 4 mm - 1 m 1 m, 600 × 100 × 4 mm - 1 m 1 m, 750 × 100 × 4 mm - 3 m 15000 m, 1200 × 400 × 5 mm - 3500 m 2.5 m, 100 × 400 × 5 mm - 100 m 2.5 m, 800 × 300 × 5 mm - 100 m 2.5 m, 600 × 300 × 5 mm - 600 m 2.5 m, 400 × 200 × 5 mm - 3000 m 2.5 m
MOC : Isophthalic Resin with UV Stabilizer
FR Grade : Low Flammability as per IS : 6746 - 1994
Colour : Light Gray
Fabrication Method : Joined with Coupler Plate
Applicable Standard : NEMA FG – 1 : 1993
Year of Execution : 2019
