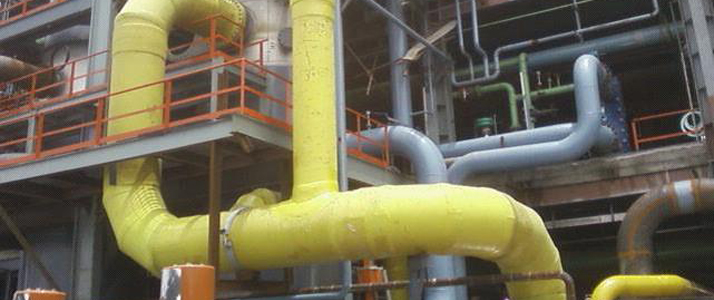

FRP Process Piping System

FRP Process Piping System

  • Salient Features
  • Technical Specifications
  • Quality Specifications

Salient Features

  • Light weight and long service life up to 50 years
  • Excellent resistance against corrosive material and erosive natural soil
  • Several Precision Joining Mechanisms Available
    • Butt & Wrap Lamination Type
    • Flange End Type
  • Selection of compatible Resin based on fluid application
  • Capability to sustain high pressure and buckling for UG application
  • High amount of UV Stabilization and Low Thermal Application for AG application & Flexibility of modification within a short duration
  • Superior hydraulic characteristics
  • Fast execution & Completion of projects in time

Technical Specification

Design Standards

Major Design Standards (As Applicable): BS 7159, IS0 14692, API 15LR, ASMEB 31.3, DIN 16965 & 16966


DN, PN Class
  • Process Pipe Diameter Ranges : 25 mm to 1200 mm
  • Pressure Range: 1 Bar to 32 Bar (Higher Pressure Class available as per customer requirement)

Size

Pipes are available in various lengths from 3.0 meter to 12.0 meter as required.


Material of Construction

  • Polyester Resin
  • Vinyl Ester Resin
  • Superior Grade Vinyl Ester Resin
  • Isophthalic Resin
  • Epoxy Resin
  • Fiberglass

Quality Specifications

  • As per AWWA Specifications: AWWA C 950
  • As per ISO Specifications: ISO 14692
  • For High Pressure Applications: ASTM D 2996
  • For Oil & Petroleum Sector: API 15 LR up to 1000 PSI
  • For Thermoplastic Liner with GRP: DIN 16965 & DIN 16966
