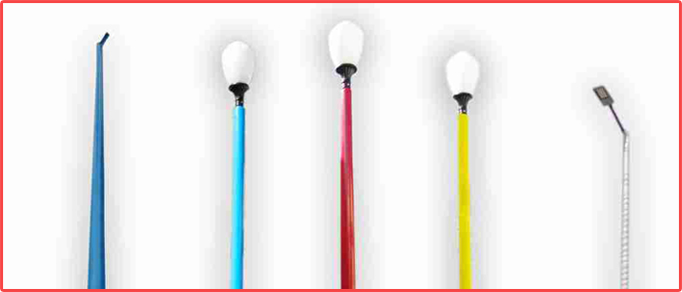

FRP Lighting Poles

FRP Lighting Poles

  • Salient Features
  • Technical Specifications
  • Quality Specifications

Salient Features

  • High Corrosion & Weather Resistance
  • Light in Weight
  • Low cost of Installation
  • Easy of Assembly
  • Maintenance Free, Eco Friendly and Durable
  • Large view glasses are possible to fix with the Insulated panel doors without any extra support
  • High Bending Strength
  • Available in any color as per requirement

Technical Specification

Type

  • Conical Type Pole (With Filament Winding Process)
  • Cylindrical Type pole (With Pultrusion Process)

Pole Accessories

  • Junction Boxes (Internal or External)
  • Brackets (Single Arm or Double Arm with Length of 1000mm/1500mm/2000mm)
  • With base plate or Burial Type

Design Standards

  • As per ANSI C 136.20 - 1990
  • BS EN 40 - 7:200
  • AASHTO LTS-2 1985
  • IS 875 Part 3 - 1987

Size

Conical Type With Filament Winding

  • Length: 4 meters to 13 meters
  • Base OD: Min. 143mm - Max. 315mm
  • Top OD: 105mm

Cylindrical Type With Pultruded Round Profile

  • Length: Max. 4 meters
  • OD: 75mm & 100mm

Material of Construction

  • Polyester Grade Resin with Fiberglass

Quality Specifications

  • As per ANSI C 136.20 - 1990
  • BS EN 40 - 7:200
  • AASHTO LTS-2 1985
